Protection Technical Textiles
go to previous ArD3E3 go to next
350 gr/m2, 54% Viscose Fr 20% Polyamide 6.6 20% Wool 5% p-aramid 1% Carbon, Inherent Flame Retardant, Antistatic Satin Fabric
54% Viscose Fr 20% Polyamide 6.6 20% Wool 5% p-aramid 1% Carbon Flame Retardant Satin Fabric

54% Viscose Fr 20% Polyamide 6.6 20% Wool 5% p-aramid 1% Carbon, inherent flame retardant antistatic satin fabric for molten metal splash protection .


ArD3E3 fabric is used to make jacket and trousers for hot metal, steel and aluminum industries.


It is resistant to hot metal splash around 1500'C degrees.


ArD3E3 are inherent flame retardant with EN 11612 D3 E3 level certification.

Suitable for antistatic application, certified for EN ISO 1149-5.

It provides arc flash protection with EN 61482 class 1 (4 kA) certification.


Technical Parameters

Fiber 54% Viscose Fr(CV FR) 20% Polyamide 6.6(PA6.6) 20% Wool(WO) 5% p-aramid(p-AR) 1% Carbon (CF) EN ISO 2076
Yarn Warp:24/2 Ne; Weft:24/2 Ne EN ISO 2060
Weight 350 ±10 gr/m2 EN ISO 3081
Width 1600 ±20 mm EN ISO 3932
Tensile Strength Warp > 1500N ; Weft > 1000N EN ISO 13934-1
Tear Strength Warp > 50N ; Weft > 50N EN ISO 13937-2
Dimensional Change -3% < Length < +3% ; -3% < Width < +3% EN ISO 5077
Rubbing Fastness 4-5 EN ISO 105 X12
Perspiration Fastness 4-5 EN ISO 105 E04
Washing Fastness 4-5 EN ISO 105 C06
Dry Cleaning Fastness 4-5 EN ISO 105 D01
Hypochlorite Fastness 4-5 EN ISO 105 N01
Peroxide Fastness 4-5 EN ISO 105 N02
Hot Press Fastness 4-5 EN ISO 105 X11
Light Fastness 4-5 EN ISO 105 B02
Perspiration Light Fast. 4-5 EN ISO 105 B07
pH 4.0 - 7.5 EN ISO 3071
Azo Test No Azo Colorants. EN ISO 14362-1
Application Hot metal protective clothing
Quality Management Done ISO 9001
Welding Protection Yes EN ISO 11611
Flame and Heat Protection D3 E3 EN ISO 11612
Antistatic Yes EN ISO 1149-5
Arc Protection Class 1 (4kA) EN ISO 61482-1-2
ATPV > 10 cal/cm2 EN ISO 61482-1-1
Chemical Resistant Yes EN ISO 13034


Technical Documents

>> ArD3E3 Moda Pro Data Sheet

Certificates




Applications

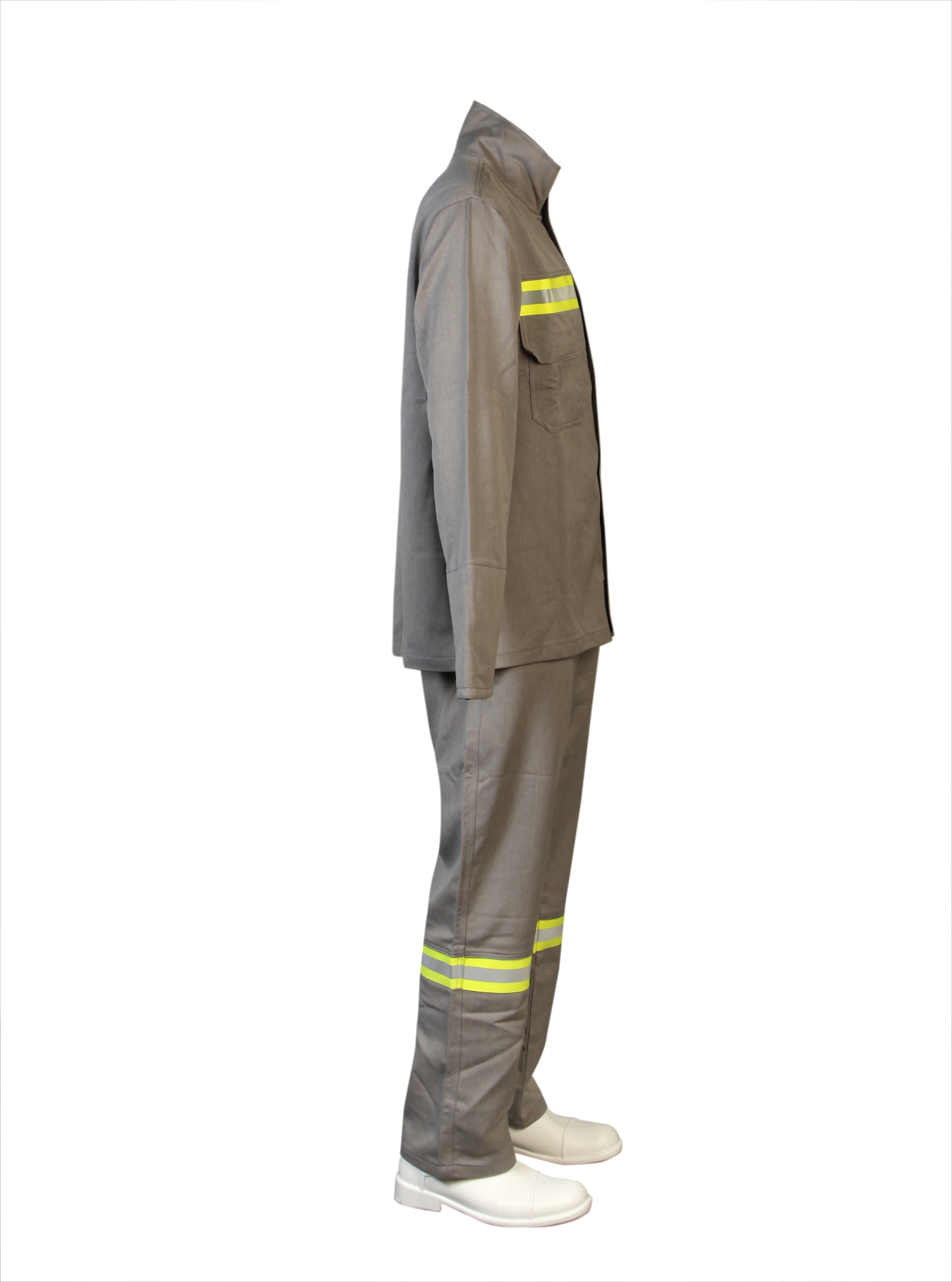

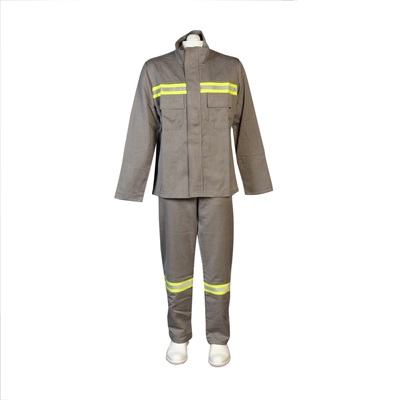

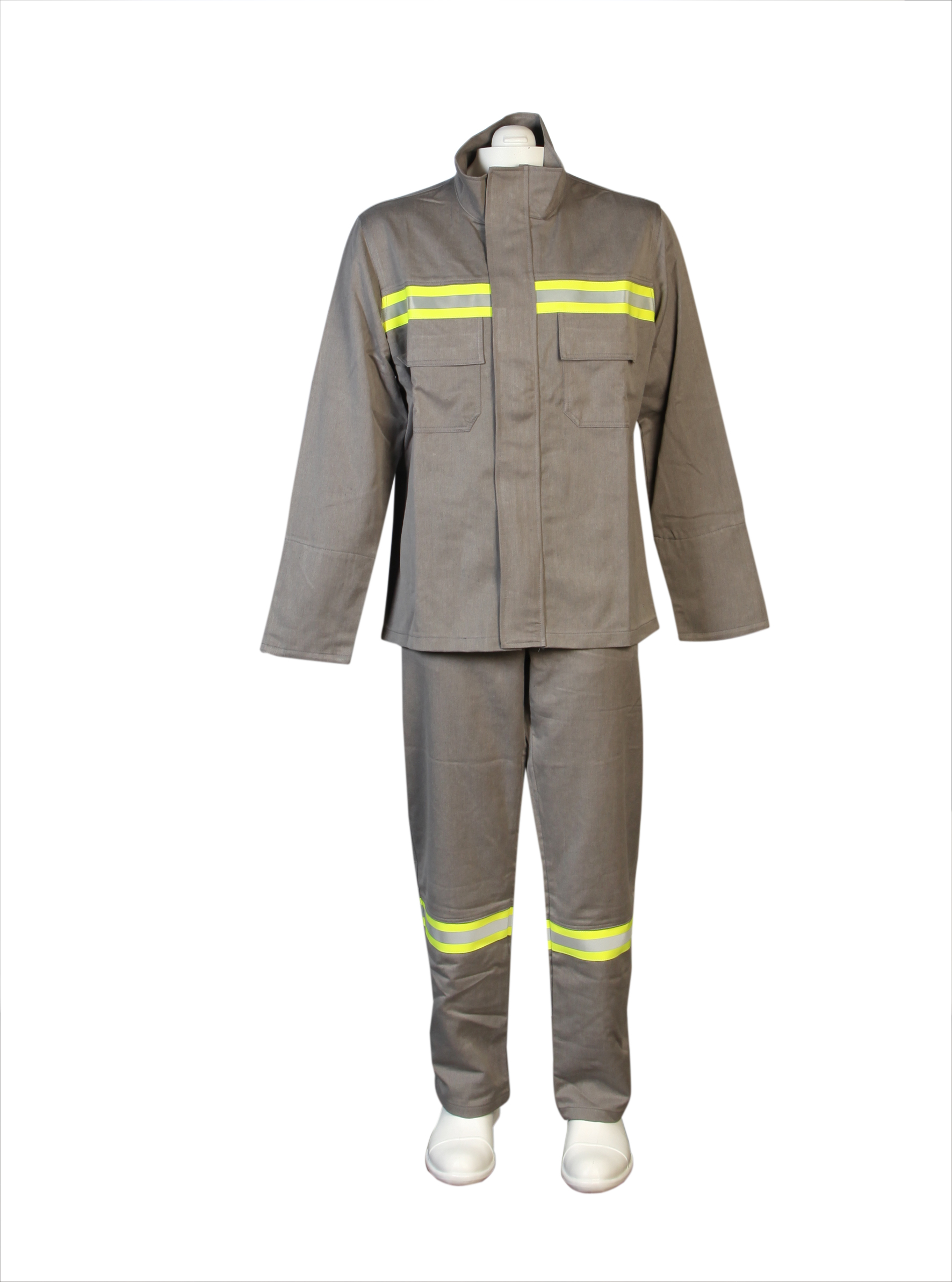

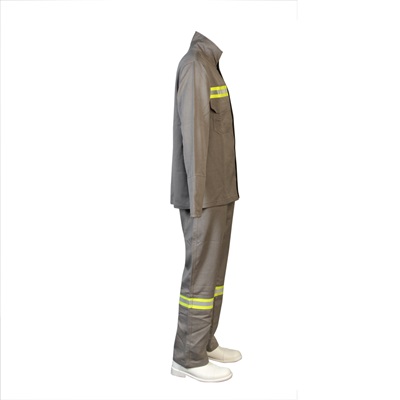

Cloth resistant to molten metal splash Cloth resistant to molten metal splash side view

Functions

Oeko Tex Standard 100

EN 11612 EN 11611 EN  1149-5 EN 61482 EN 13034




Care Instructions

60'C Machine Wash No Chlorine Based Bleaching Can Be Tumble Dried On Low Heat Setting Maximum 150'C Warm Iron Suitable for Dry Cleaning


Colors and Article Numbers

  Red PN-35538-09A - STANDARD - ArD3E3 - 5746
  Dark Blue PN-5011347-09A - STANDARD - ArD3E3 - 5745
  Black PN-97900-09A - STANDARD - ArD3E3 - 5744
  Grey PN-97899-09A - STANDARD - ArD3E3 - 5743
  Navy PN-5011740-09A - STANDARD - ArD3E3 - 5742
