Flexible, pvc stretch ceiling fabric systems.

No need for special profiles nor heating during start-up.

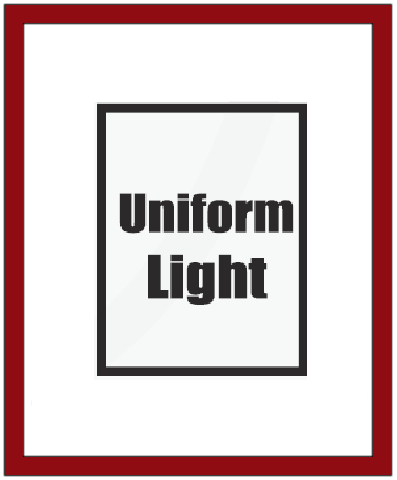

No insect accumulation during time. Very fast start-up. No shrinkage due to heat stabilized fabric system. More homojenious light distribution.

Suitable for digital printing

Technical Parameters

Fiber	46% Polyester (PES) 4% Elastane (EL) 50% PVC	EN ISO 2076
Yarn	75 Denier	EN ISO 2060
Weight	350 ±5 gr/m2	EN ISO 3081
Width	1800 ±20 mm	EN ISO 3932
Bursting strength	> 1500 kPa (kN/m2)	EN ISO 13938-1
Dimensional Change	-5% < Length < +5% ; -5% < Width < +5%	EN ISO 5077
Flame Retardancy	B1	DIN 4102-1
Uv Permeability	< 1%	AATCC 183
Working Temperature	-30'C to 70'C	DIN 4102-1
Transmittance at 550 nm
Reflectance at 550 nm
Absorbance at 550 nm
Application	Stretch Ceiling
Quality Management	Done	ISO 9001

Technical Documents


Certificates

Applications

Functions

Safe Textile

Care Instructions

Colors and Article Numbers

White

PTO-10275-1

- STANDART -

ArDiLight-4224
